Hammer-Capsule®

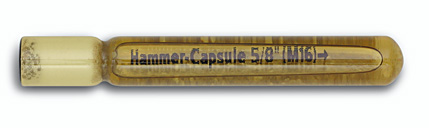

The Hammer-Capsule system consists of a self contained, single use, two-part glass capsule into which threaded anchor rod or reinforcing bars can be directly driven without the need for a chisel point or spinning action. It is designed for use in the installation of 3/8" through 1" diameter threaded rod in solid concrete and masonry materials. It can also be used to install reinforcing bars.

A mixture of hardener and quartz aggregate is contained in the upper portion of the capsule while the lower portion contains an epoxy acrylate resin. Unlike traditional capsule anchors which required the use of chisel-pointed anchor rod and special installation tools, the Hammer-Capsule is designed for use with straight cut anchor rod.

View Product Specs
View Submittals
View Material Safety Data Sheets
You will need Acrobat Reader to view these files.



note:

The information and data contained within this documentation was current as of May 25, 2012.

The information is subject to change and is updated as needed. Powers Fasteners, Inc. reserves the right to change designs and specifications without notice or liability for such changes.
